Fabrication

Polyfit’s plastic fabrication workshop is equipped to fabricate custom tanks, guards, chutes, launders, fittings and pipe spools to our client's requested specifications. Our fully equipped workshop includes a sheet butt fusion welding machine, lathe, and CNC router to provide our clients with a quality product that is cost effective.

We have experience welding and working with a variety of plastics including:

  • High Density Polyethylene (HDPE)
  • Ultra High Molecular Weight Polyethylene (UHMWPE)
  • Polypropylene (PP)
  • Polyvinyldenfluroride (PVDF)
  • Polyvinylchloride (PVC)
  • Acrylonitrile Butadiene Styrene (ABS)
  • Dual Containment Systems

Our workshop has a range of welding equipment for pipe spooling, fabricating segmented bends, tees and junctions to client specifications and drawings. We can create custom rectangular and cylindrical tanks supported by our Tank Designer 5 Software to perform engineered calculations for temperature, chemical and elemental factors for client review. With the use of our sheet butt fusion welding machine we can weld and/or roll HDPE sheet up to 40mm thick with full weld traceability.

  • For wear lining systems which are designed for flow promotion on steel surfaces due to UHMWPE’s low friction, anti stick and abrasion-resistant properties.
  • This method takes advantage of the mechanical strength of steel pipe with the abrasion, chemical and corrosion resistance of HDPE which is ideal for slurry applications.

On-site Works

Polyfit offer HDPE welding onsite using our large range of HDPE welding range with equipment available to weld pipe sizes between 25mm – 1200mm, with both high and low pressure welding machine options.


We offer total project delivery from the initial contact, full fabrication process, receipt of drawings, excavation, supply, pipe welding to delivery and on-site installation, bedding and backfill, completed with testing and commissioning.

We have experience building large bore pipelines, above and below ground, pipe spooling, civil earthworks, ring mains, fuel hubs and tailings dams.

A team of project managers with decades of combined experience in the civil, mining and construction industries are commitment to delivering their projects on time and on budget, as well as collaborating with clients to deliver the best possible outcome.

Trenching

Polyfit’s powerful Vermeer trenching machines are the ideal machines for excavating pipeline trenches, with the ability to go through most ground types with ease. We have the ability to cut trenches between 800mm up to 1000mm wide and up to 2.4m deep with our current fleet.

The use of trenching machines for pipeline excavation is an effective alternative to traditional excavation methods ensuring a flexible, reliable and cost effective solution. Our operators have extensive experience in operating and maintaining our Vermeer trenching machines and are ready to assist on your next project.

Lining

Polyfit offer geomembrane lining systems including supply and installation of dam and pond liners, turkey’s nests, landfill liners, secondary containment systems, and floating covers. We can supply and install HDPE liner, geotextiles and geosynthetic clay liner to suit project requirements.

We use a range of industry leading Demtech equipment from www.demtech.com including wedge welders, extrusion welders with spark, tensile and air vacuum testing equipment available for quality assurance.

Machine Hire

Polyfit has a fleet of fully maintained, premium quality plastic welding machinery and consumables manufactured by the world’s leading brands.

Our fleet of equipment for hire includes butt fusion welding machines, including tracked high pressure welder and low pressure welders, electrofusion machines and socket welders.

We also have a range of extrusion welding and wedge welding equipment for all your HDPE welding needs.

Our fleet is tested, calibrated and serviced to Australian standards and also undergoes rigorous internal quality checks by our qualified maintenance team.

Our knowledgeable team have the experience to advise the best machinery options for your upcoming projects.

enquire now
Polyfit Fabrication - Dixon machine hire

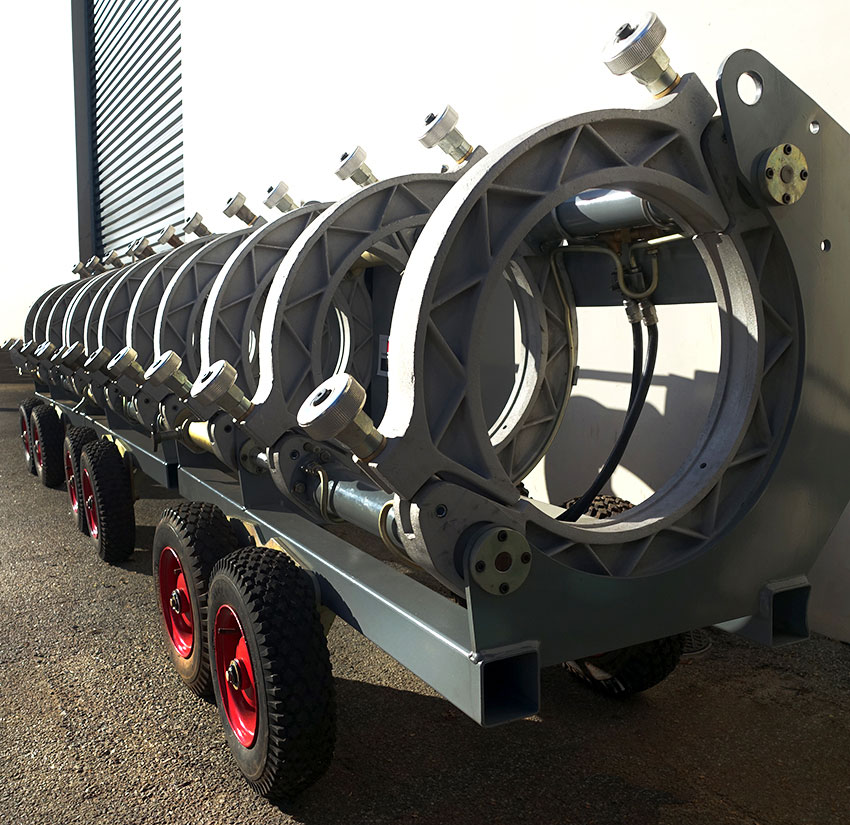

Dixon HF355
Name Description
Dixon LF110 Welds pipe sizes from 32mm - 110mm
Dixon HF225 / EHF225 Welds pipe sizes from 63mm - 225mm - Hand Pump and Electric Hydraulic Options available
Dixon HF355 / EHF355 Welds pipe sizes from 110mm - 355mm - Hand Pump and Electric Hydraulic Options available
Dixon HF450 Welds pipe sizes from 200mm - 450mm
Dixon HF630 Welds sizes from 355mm - 630mm
enquire now
Polyfit Fabrication - Tecnodue Bushranger machine hire

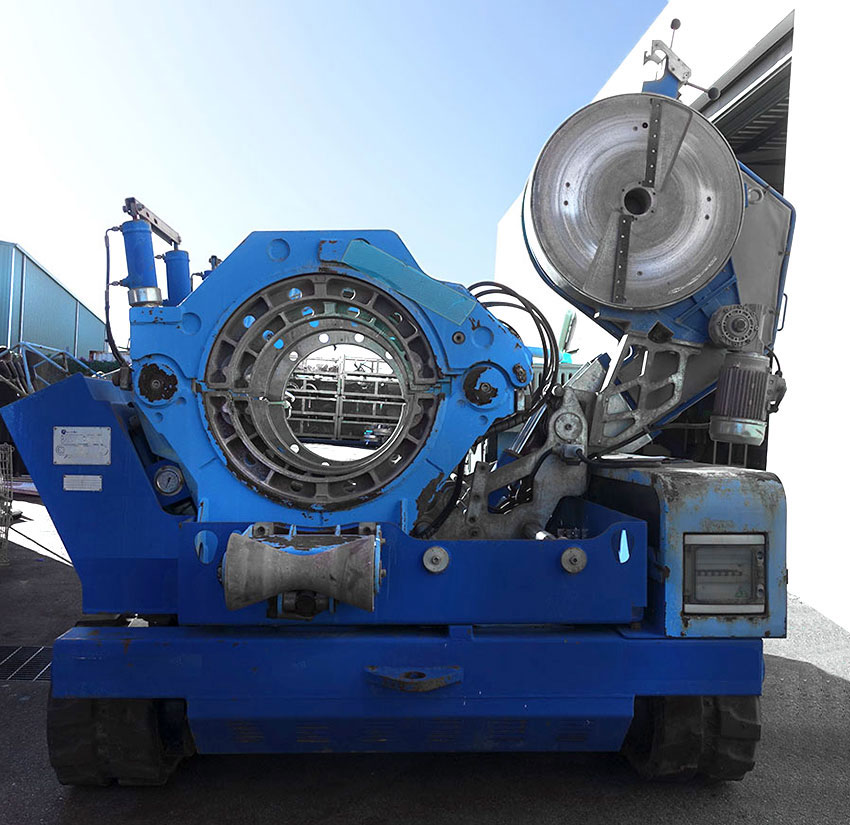

Tecnodue Bushranger 630
Name Description
Tecnodue PT250 Welds pipe sizes from 200mm - 500mm
Tecnodue PT355 Welds pipe sizes from 90mm - 355mm
Tecnodue PT500 Welds pipe sizes from 63mm - 250mm
Tecnodue Bushranger 630 High pressure welding tracked machine with onboard generator that welds pipe sizes from 315mm - 630mm
enquire now
Polyfit Fabrication - Ritmo machine hire

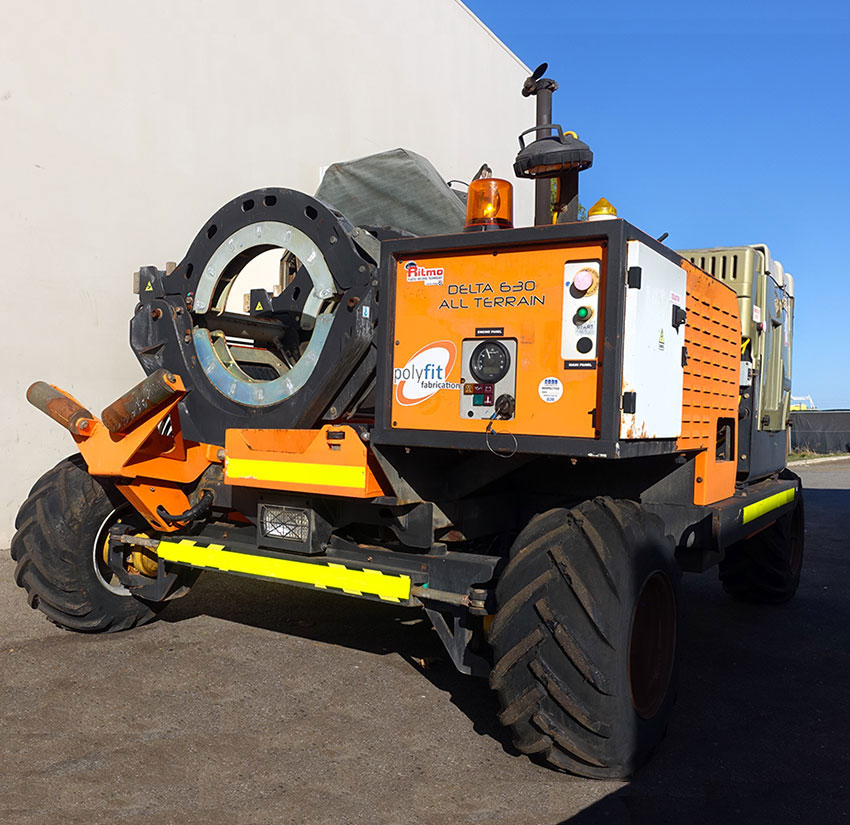

Ritmo Delta 630 All Terrain
Name Description
Ritmo Delta 450 Welds pipe sizes from 200mm - 500mm
Ritmo Delta 630 Welds pipe sizes from 280mm - 500mm
Ritmo Delta 800 Welds pipe sizes from 500mm - 800mm
Ritmo Delta 1200 Welds pipe sizes from 710mm - 1200mm
Ritmo Delta 630 All Terrain High pressure welding wheeled machine with onboard generator that welds pipe sizes from 225mm - 630mm
enquire now
Polyfit Fabrication - McElroy machine hire

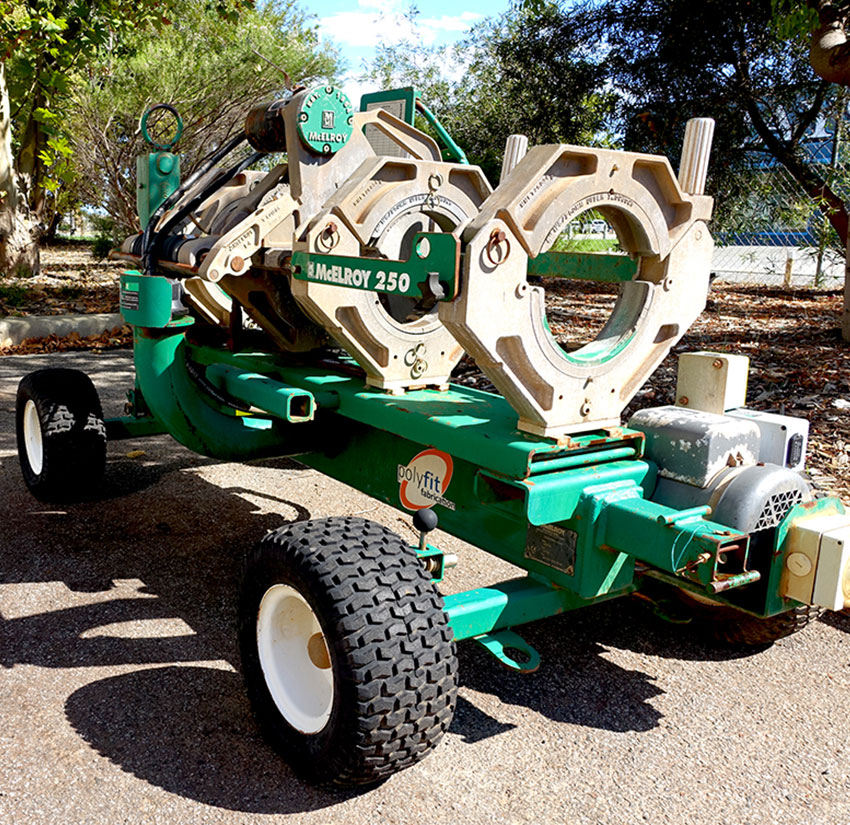

McElroy Rolling 250
Name Description
McElroy Pitbull 14 Welds pipe sizes from 32mm - 110mm
McElroy Rolling 250 High pressure welding wheeled machine that welds pipe sizes from 63mm - 250mm
McElroy Rolling 618 High pressure welding wheeled machine that welds pipe sizes from 160mm - 450mm
McElroy Tracstar T618 High pressure welding wheeled machine that welds pipe sizes from 160mm - 450mm
McElroy Tracstar T500 High pressure welding wheeled machine that welds pipe sizes from 160mm - 500mm
McElroy Tracstar T900 High pressure welding wheeled machine that welds pipe sizes from 355mm - 900mm
enquire now
Polyfit Fabrication - World Poly machine hire

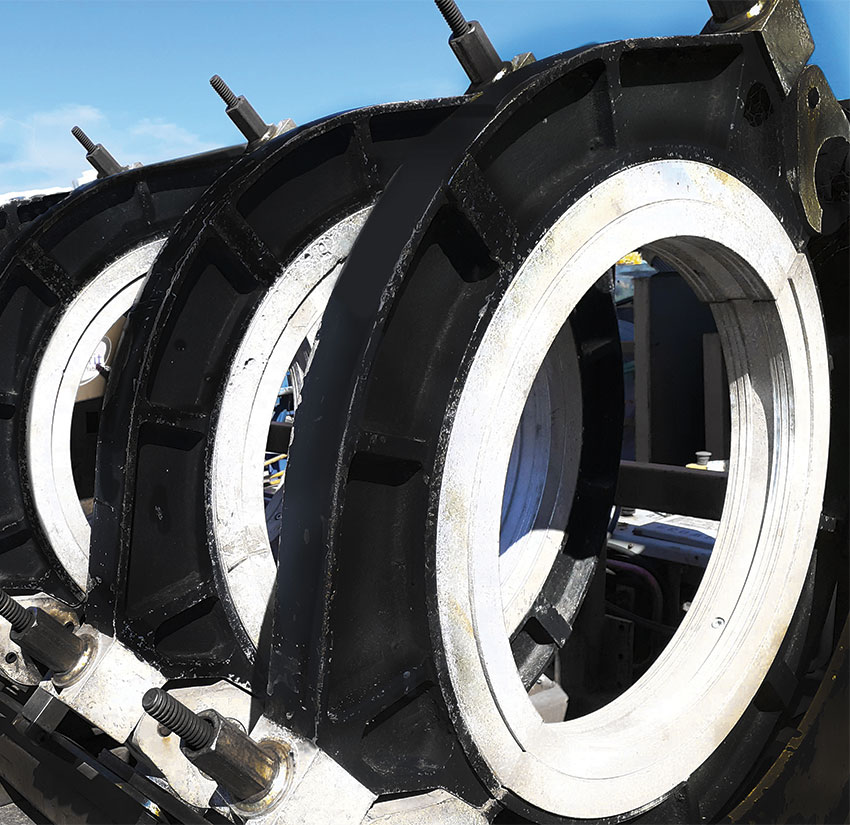

World Poly 1000
Name Description
World Poly 450 Welds pipe sizes from 200mm - 450mm
World Poly 630 Welds pipe sizes from 315mm - 630mm
World Poly 800 Welds pipe sizes from 450mm - 800mm
World Poly 1000 Welds pipe sizes from 500mm - 1000mm
enquire now
Polyfit Fabrication - Vermeer T955 Trencher
Vermeer T955 Trencher
Name Description
Electrofusion Welding Machines The electrofusion welding machine is used for the welding and jointing of electrofusion pipe fittings.
Extrusion Welders Extrusion welding guns are designed for the extrusion welding of polyethylene, polypropylene and other thermo-plastic materials
Wedge Welders Wedge welding equipment for HDPE lining activities.
Socket Welders Designed for socket welding in the fabrication and installation of polyethylene tanks. Welders available to cater for pipe sizes 15mm - 125mm
Hot Air Welders Hot air welders to assist with fabrication, often used in conjunction with extrusion welders.
Generators Portable power supply. Available for 6.5kva, 8kva, 18kva, 110kva capacity.
Trenching Machine Vermeer T955 trenching machine available for hire - for more information visit trenchingwa.com.au
enquire now
